PAX S300 PIN PAD TERMINAL SETUP


PDQuick fully integrates Credit Card, Debit Card, EBT / SNAP Food Stamps and EBT Cash Benefits.

You may use Payment Processor, Merchant Services provider or ISO
of your choice that can provide a compatible PAX Pin Pad Terminal.

Supporting the following PAX Pin Pad Terminals only:

1. PAX A35 Setup Sheet

2. PAX SP30 Setup Sheet    3. PAX S300 Setup Sheet

Obtain your Credit Processing equipment from your Merchant Services Provider.
We do not provide Pin Pad Payment Terminal equipment or supplies.

PAX S300 Pin Pad Terminal Internal Settings   Diagnostic Example in PDQuick
1 Main Communication LAN
2 Backup Communication Dial
3 Maximum Tries 1
4 Connect Timeout 300
5 Lan Type Static
6 IP Address ex: 192.168.192.177
7 Subnet Mask ex: 255.255.255.000
8 Gateway IP ex: 192.168.192.001
9 DNS MODE NORMAL
10 DNS IP ex: 192.168.192.001
11 ECR CommType Ethernet
12 Communications Port 10009
13 Communication Protocol HTTP GET
14 Duplicate Checking ON (enable)

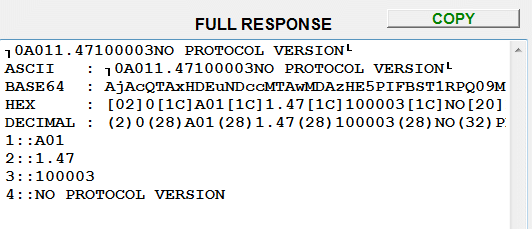

Perform an Initialize Terminal command in the PDQuick Diagnostic utility and under the Full Response window you should see the Pax Base Version in cell 2::


This example shows the Pax S300 Base v1.47
Pax S300 Pin Pad Terminal Supported Base Version

If you see this type information the terminal is communicating with PDQuick properly. We have tested this terminal model using PAX Base v1.47 released by the manufacturer on March 3, 2023. Other PAX base versions may work as well but we do not guarantee or support them.

Enter the setup mode for PAX S300 terminals by holding the FUNC key down and press the "1" key.
Enter the password which is todays date (MMDDYYYY) and press the Green Arrow Key.
You may be prompted to enter the password multiple times throughout the setup process.




PAX TERMINAL COMM ERROR 100010
If you get this error when processing a card and you are certain all other settings are correct there is a good chance your router is blocking the Terminal IP address and port. Configure your router to allow access to the terminal as described below.

Router / Firewall Settings :
If you are connecting your PAX terminal through a router you will need to set Port Forwarding up for EACH terminal IP and Port connected to the router.
Port Forwarding Example :
Port forwarding example for a router
Click image for details
