PDQUICK RETAIL PAX SP30 PIN PAD TERMINAL SETUP |
|
PDQuick fully integrates Credit Card, Debit Card, EBT / SNAP Food Stamps and EBT Cash Benefits. |
|
Obtain your Credit Processing equipment from your Merchant Services Provider. We do not provide Pin Pad Payment Terminals or any other hardware and supplies. |
|
Notice to Processors: DO NOT enable Partial Authorizations Partial Debit Authorizations are NOT Supported |
| PAX SP30 Pin Pad Terminal Internal Settings | Diagnostic Example in PDQuick | ||||||||||||||||||||||||||||||||||||||||||||||
|

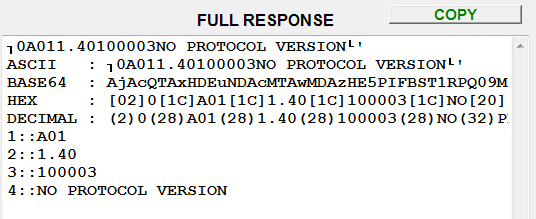

Perform an Initialize Terminal command in the PDQuick Diagnostic utility and under the Full Response window you should see the Pax Base Version in cell 2:: This example shows the Pax SP30 Base v1.40
If you see this type information the terminal is communicating with PDQuick properly. We have tested this terminal model using PAX Base v1.40 released by the manufacturer on March 3, 2023. Other PAX base versions may work as well but we do not guarantee or support them. |
|
Press and release the "F" key. |
|
PAX TERMINAL COMM ERROR 100010 If you get this error when processing a card and you are certain all other settings are correct there is a good chance your router is blocking the Terminal IP address and port. Configure your router to allow access to the terminal as described below. Router / Firewall Settings : If you are connecting your PAX terminal through a router you will need to set Port Forwarding up for EACH terminal IP and Port connected to the router. |
Port Forwarding Example :
Click image for details |
|
